ENV RD-10

ENV RD-10 ---- $159.⁹⁰ (Worldwide Free Shipping)
A Tri-mode meter for up to 8GHz/10KHz

(0.1-8GHz) Very easy to use and sophisticated meter to scan your home for EMF RF, LF Magnetic and LF electric fields with sound alarm and Windows / Mac / Android connectivity for data logging.

In stock

FREE CelloEye-24G (Up to 24GHz RF detector) with every order - until December 31

Download PDF Download manual

Download driver Download USB Driver

Download software Download PC software

Download Mac software

ENV RD-10 Android App Download Android software

Applications:

Measuring RF from cell towers, smart meters, Wi-Fi, Bluetooth and other various wireless/cordless transmitters.
Measuring LF magnetic and electric fields from power lines, fuse boxes and home appliances.
RF / LF Magnentc / LF Electric field measurement.
Wireless LAN (Wi-Fi) detection, installations.
Capture smart meters transmission behavior.
Spy camera, wireless bug finder.
Cellular/cordless phone radiation levels.
Microwave oven leakage detection.
Personal living environment EMF scanning.

Specs:

RF Frequency range: 100MHz to 8GHz (RF meter), (-60dBm to +5dBm).
LF-Magnetic: 50Hz to 10KHz - 0mG to 50mG with 0.1mG resolution.
E-field bandwidth of 50Hz-10KHz - 1v/m to 1000v/m.
Show LF Magnetic fields main frequency 40Hz - 15KHz.
Show LF Electric field main frequency 40Hz - 15KHz.
9 LED’s showing the intensity.
Sound alarm.
Sampling rate: 20,000/sec.
Analog RF and Digital burst RF (GSM, TDMA, CDMA, LTE, DECT, ZigBee, Bluetooth, UWB, Wi-Fi, WiMAX 2.4GHz, 3.6GHz, 5.8GHz, 2,3,4 generations).
Compact, low weight 45 gr, pocket size design, 87mmX46mmX15mm.
Small, compact handheld design, 69mmX110mm.
Rechargeable LiPo battery.
USB connection for a PC logging software and constant power supply. Possible to save the data to excel for analyzing.

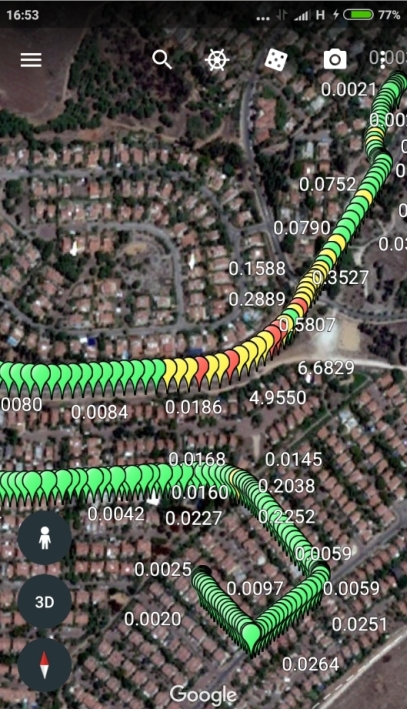

Capture data with location (on supported Android devices) later to place on Google Earth (see picture at the bottom).
