Radmeters
Personal EMF detectors and meters

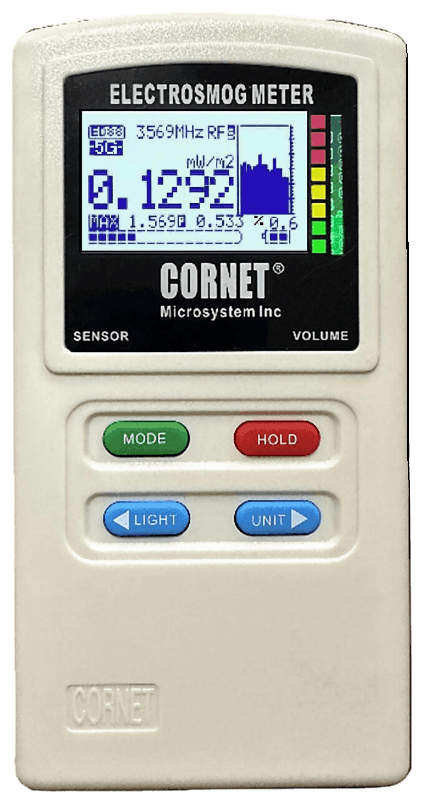

Cornet ED98QPro5G Quad-Mode
Cell towers | Smart meters | WiFi signal strength meter | Microwave ovens | Power lines | Transformers | Home appliances



Cornet ED88TPlusCornet ED98QPro5G ---- $22990 $219.90 (Worldwide Free Shipping)
A Quad-mode meter for up to 8GHz/10KHz

(0.1-8GHz) RF/LFM/LFE Electrosmog field strength power meter with build-in Gauss meter and E-Field function (Quad mode) with sound output and USB PC connection



In Stock





 Download PDF Download user manual

Download PDF Download data logging manual

Download driverDownload USB Driver

Download softwareDownload PC software

ED98QPro5G is a 4th generation of ED88TPlus series High performance now a Quad-mode Electrosmog meter with build-in RF Fireld strength power meter, LF Gauss meter, LF Electric Field meter and now also Light Flicker meter.

Build-in Frequency counter, support all 5G mobile frequency bands. with 5G signal frequency indicator,

Data Logging capability, record and view the Logged Data in graphic window on the meter's LCD display. send data through USB interface to PC for analysis.

The Statistical data of the received signal is collected and displayed in realtime on the LCD display.

  Applications:

  • Electromagnetic field strength measurement. both low frequency and high frequency.
  • Mobile phone base station radiation power Density safety measurement.
  • Telecommunications(CW,TDMA,GSM,DECT).
  • RF safety measurement.
  • RF power measurement for transmitters.
  • Wireless LAN (Wi-Fi) detection, installations.
  • Smart meters
  • Spy camera, wireless bug finder.
  • Cellular/cordless phone radiation safety level.
  • Microwave oven leakage detection.
  • Electric and magnetic field measurement.
  • Light Flicker percent measurement for LED lights and other light fixtures(400-700THz visual light).
  • E-field mode: measured ELF electric field strength is shown on the digital LCD display with V/m.
  • Personal living environment EMF safety.
  • Data logging via USB to PC connection software.

Specs:

  • Quad operation mode: RF power meter mode, LF Gauss meter mode, LF E-Field mode and Light Flicker percent measurement.
  • RF Frequecy range: 100MHz to 8GHz (RF meter), (-65dBm to +5dBm),(0.1uw/m2 to 1.8w/m2), (0.008v/m to 26.2v/m).
  • Build-in Real time Frequency counter (100MHz-4.2Ghz).
  • LF1: 50Hz to 10KHz (0.1uT to 60uT)/(1mG to 600mG).
  • LF2: 50Hz to 1KHz (0.01uT to 1uT)/(0.1mG to 10mG).
  • E-field bandwidth of 50Hz-50KHz with sensitivity of 10v/m to 1000v/m.
  • Peak power density measurement 1.5uW/m2 to 0.58W/m2.
  • LCD Backlight: 15 seconds auto-off and manual on/off control.
  • LCD Histogram and bar display to display power density level.
  • Ultra fast sampling rate 25000 times/sec. for modern digital RF pulse signals.
  • Capture very short RF bursts signal down to 100usec.
  • Support all non millimeter waves 5G frequency bands including the new 5G C-band 3.5GHz.
  • 5G frequency indicator for supported 5G mobile band signals, Statistical data of detected signal on LCD display for SBM2008 recommendation.
  • Show Both Signal level and Frequency of detected signal.
  • Error rate: +/- 3.5dBm, LF: 20%, E-field: 25%.
  • Support WiFi, 3G/4G phone, DECT, CDMA, 5G mobile, WiFi-6, WiMAX, GSM, Bluetooth, AC smart meter, Ham radio and IoT wireless devices.
  • Max and Hold function, mW/m2, V/m, dBm, mG, uT.
  • Average, Sound output, audio Alarm function. Calibration correction.
  • Earphone port.
  • Volume control.
  • USB connection for data communiation and power supply.
  • Audio Sound ON/OFF control, programmable Alarm
    triggering level.

  • Accurate, easy to use device, excellent for personal Electrosmog exposure evaluation for living environment, such as close by Mobile phone base station.
  • The Light Flicker meter mode is an excellent tool for measuring the LED light flicker problems in living environment which is known to affect human health and are regulated by the new EU, UL, and IEEE1789 of USA safety standards.
  • Build-in Sensing Antenna.
  • Small, compact handheld design, 69mmX110mm.
  • Battery operated (9V DC)
  • Constant power option via USB.
