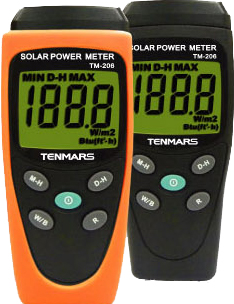

Tenmars TM-206
Solar Power Meter

     Model

TM-206

     Display

3½ digits, 2000 readings

     Range

2000 W/m2,  634BTU / (ft2xh)

     Accuracy

Typically within +/- 10W/m2 [+/-3 BTU/ (ft2xh)] or

+/- 5% whichever is greater in sunlight;

Additional temperature included error +/- 0.38 W/m2 / º C [+/-0.12 BTU/ (ft2xh)] / º C] from 25 º C

     Angular accuracy

Cosine corrected <5% for angles <60º

     Drift

< +/- 2% per year

     Over-input

Display "OL"

     Sampling time

0.25 second

Operating Temp. and    Humidity

0 º C   ~ 50 º C below 80% RH
