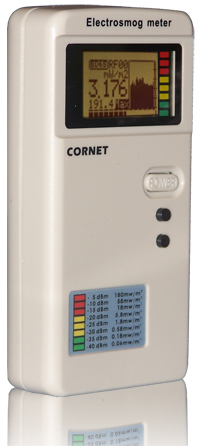

Cornet ED75 RF/LF
Cell towers | Smart meters | WiFi signal strength meter | Microwave ovens | Power lines | Transformers | Home appliances

Cornet ED75 ---- $132.⁹⁰ $119.⁶⁰ (Worldwide Free Shipping)
An RF/LF meter for up to 6GHz/10KHz (with peak hold)

The Cornet ED75 has all the capabilities of the Cornet ED25 and in addition can measure up to 6GHz, has a peak/max value holder and a new higher resolution LCD display.

No longer in production. Been replaced by the Cornet ED78S model.

 Applications:

• Electromagnetic field strength measurement. both low frequency and high frequency.
• Mobile phone base station radiation power Density safety measurement.
• Telecommunications(CW,TDMA,GSM,DECT).
• RF safety measurement.
• RF power measurement for transmitters.
• Wireless LAN (Wi-Fi) detection, installations.
• Smart meters
• Spy camera, wireless bug finder.
• Cellular/cordless phone radiation safety level.
• Microwave oven leakage detection.
• Electric and magnetic field measurement.
• Personal living environment EMF safety.

Specs:

• Dual operation mode: RF power meter mode and LF Gauss meter mode.
• Frequecy range: 100MHz to 6GHz (RF meter) (useful up to 8GHz),
  50Hz to 10KHz (Gauss meter).
• Super Wide dynamic range 60dB (RF meter).
• High sensitivity –55dBm to 0 dBm (25mV/m to 14.8V/m) (RF meter), 1mG - 500mG (Gauss meter).
• Peak power density measurement 1.5uW/m2 to 0.58W/m2.
• LCD Histogram and bar display to display power density level.
• Analog RF(AM,FM) and Digital burst RF(GSM,TDMA,CDMA,DECT, ZigBee, Bluetooth, UWB, WiFi, WiMAX 2.4GHz, 3.6GHz, 5.8GHz).
• Max and Hold function, mW/m², V/m, dBm, mG, uT.
• Accurate, easy to use device, excellent for personal Electrosmog exposure evaluation for living environment, such as close by Mobile phone base station.
• Build-in Sensing Antenna.
• Small, compact handheld design, 69mmX110mm.
• Battery operated (9V DC)
